Blackmagic Pyxis 6K review - a filmmaker’s workhorse with quality full-frame sensor

Blackmagic Pyxis 6K: two-minute review

The Blackmagic Pyxis is the company's first venture into box-style cameras, and at its core lies a proven full-frame sensor, delivering up to 6K resolution and 13 stops of dynamic range. The key benefit of this high resolution is that you can use the full width and height of the 3:2 surface area of the sensor, allowing for much greater flexibility when you need to produce content for multiple platforms.

The camera’s UI is generally a triumph, with large touch controls, clear navigation, and sensible menu structures. However, when you turn the camera to film vertically, the UI stays fixed; on the older Pocket 6K, the UI rotates to suit the new orientation, so it’s clear that Blackmagic had thought about this problem and had come up with a simple solution, and it’s odd that they’ve yet to implement it on the Pyxis, which lends itself even more to shooting in different orientations. That said, even during my brief time with the camera the company released significant updates to both the camera and the Blackmagic Camera App that delivered functionality and performance improvements, so I’m confident that it will address smaller issues like this in time.

In terms of hardware, the camera's standout feature is its machined aluminum construction, which offers professional-grade modularity and heat dissipation. However, the positioning of its cooling mechanism draws air from the base of the camera and forces it out through the top, and while it’s great for warming your hands on a chilly day, it does leave the camera feeling particularly exposed to inclement weather.

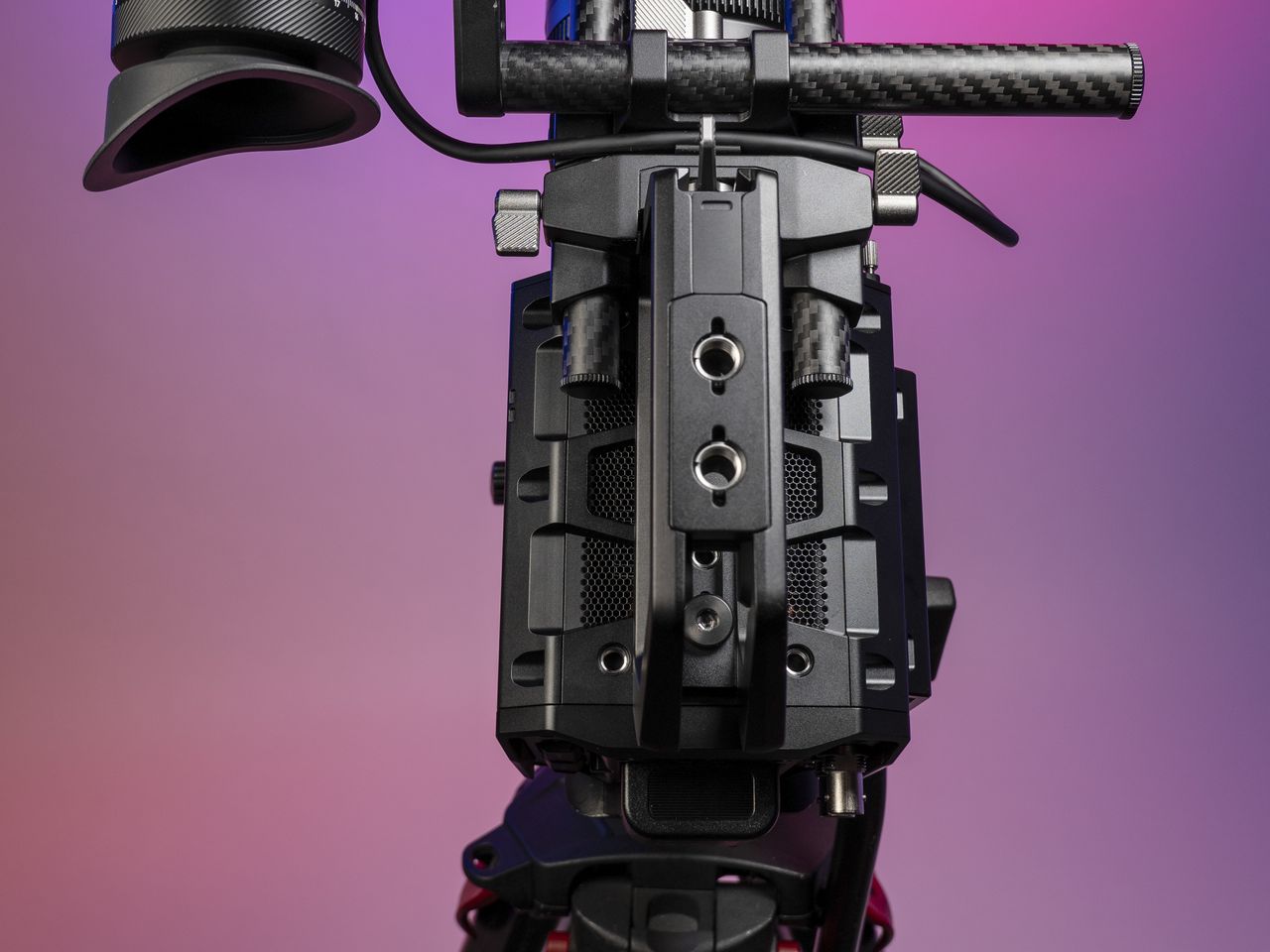

It features a multitude of mounting points on its bottom, top and side, where you’ll find its modular accessory plate, which can be used to install a rosette plate for a grip or an SSD holder for example. While the $2,995 / £2,645 / AU$4,899 (approx) starting price is competitive, buyers should factor in additional costs for essential accessories like an EVF, monitor, handle, and other rigging solutions, although many people buying this camera are likely to already have some compatible accessories.

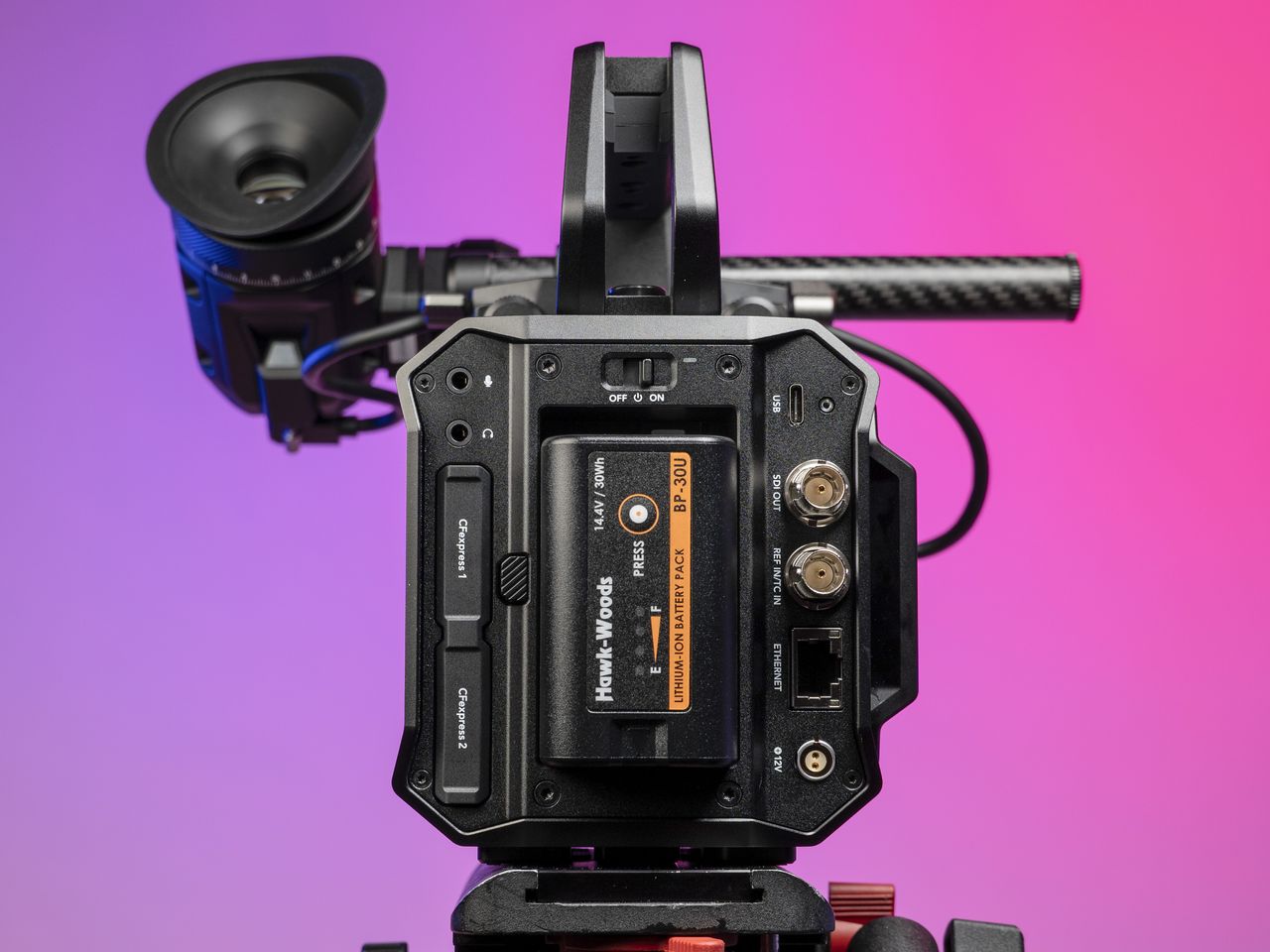

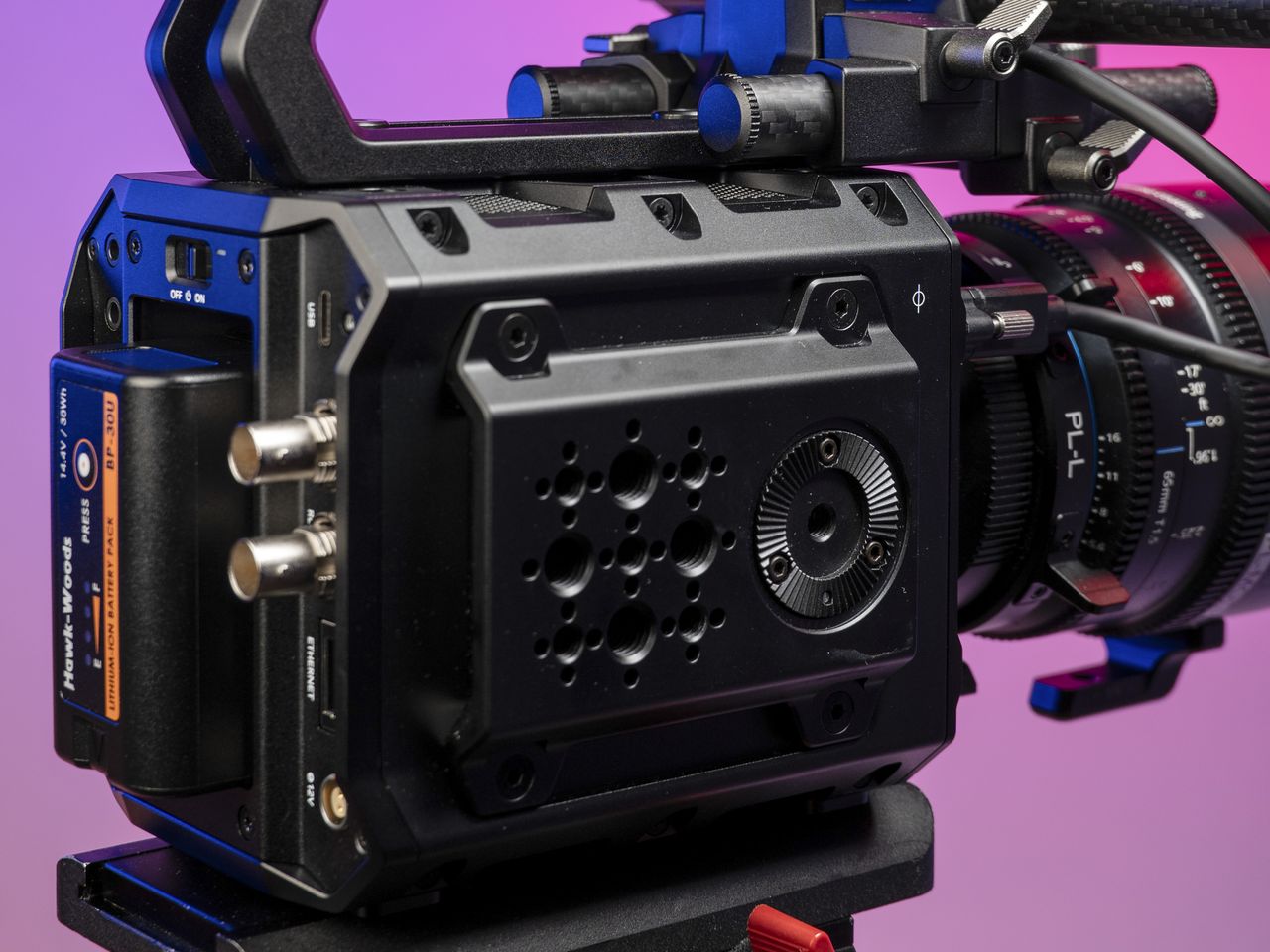

The camera excels in its versatility with its comprehensive I/O (input / output) options, including BP-U battery compatibility, a nice common standard, as well as a 12G-SDI port and USB-C connectivity. The USB-C port on the front of the camera can transmit a video signal out to an HDMI source (without visual assist tools like false color), and the one on the rear can be used to tether the camera to a mobile device for remote wireless control, monitoring and synced recording across multiple connected Blackmagic cameras. Other professional features like timecode sync, Ethernet connectivity, SSD recording, and cloud workflow integration are also included.

The Pyxis delivers impressive image quality with Blackmagic's highly regarded color science, though it lacks some features that mirrorless shooters will be used to, like advanced autofocus and optical image stabilization. Some form of internal ND filter system would have been a big bonus, but nothing in this price range or class offers that, so expecting it would be unreasonable. While its few limitations are worth consideration, if you’re in the market for a true workhorse camera that can be adapted to a wide range of shooting scenarios the Blackmagic Pyxis makes a strong case for itself, especially when you consider that the purchase of a Blackmagic camera includes a full license for the DaVinci Resolve Studio editing suite, worth $295 / £235 / AU$440.

Blackmagic Pyxis 6K: price and release date

• Body-only price: $2,995 / £2,645 / AU$4,899 (approx)
• Available now in three lens mount versions; EF-mount, L-mount of PL-mount (the latter costs $100 / £100 / AU$180 extra
• You'll want additional accessories

The Blackmagic Pyxis 6K was announced at NAB Show Las Vegas in April 2024 and is available to order now. It can be picked up for a list price of $2,995 / £2,645 / AU$4,899 body-only in EF or L-mount, while the PL mount version costs $100 / £100 / AU$180 (approx) extra.

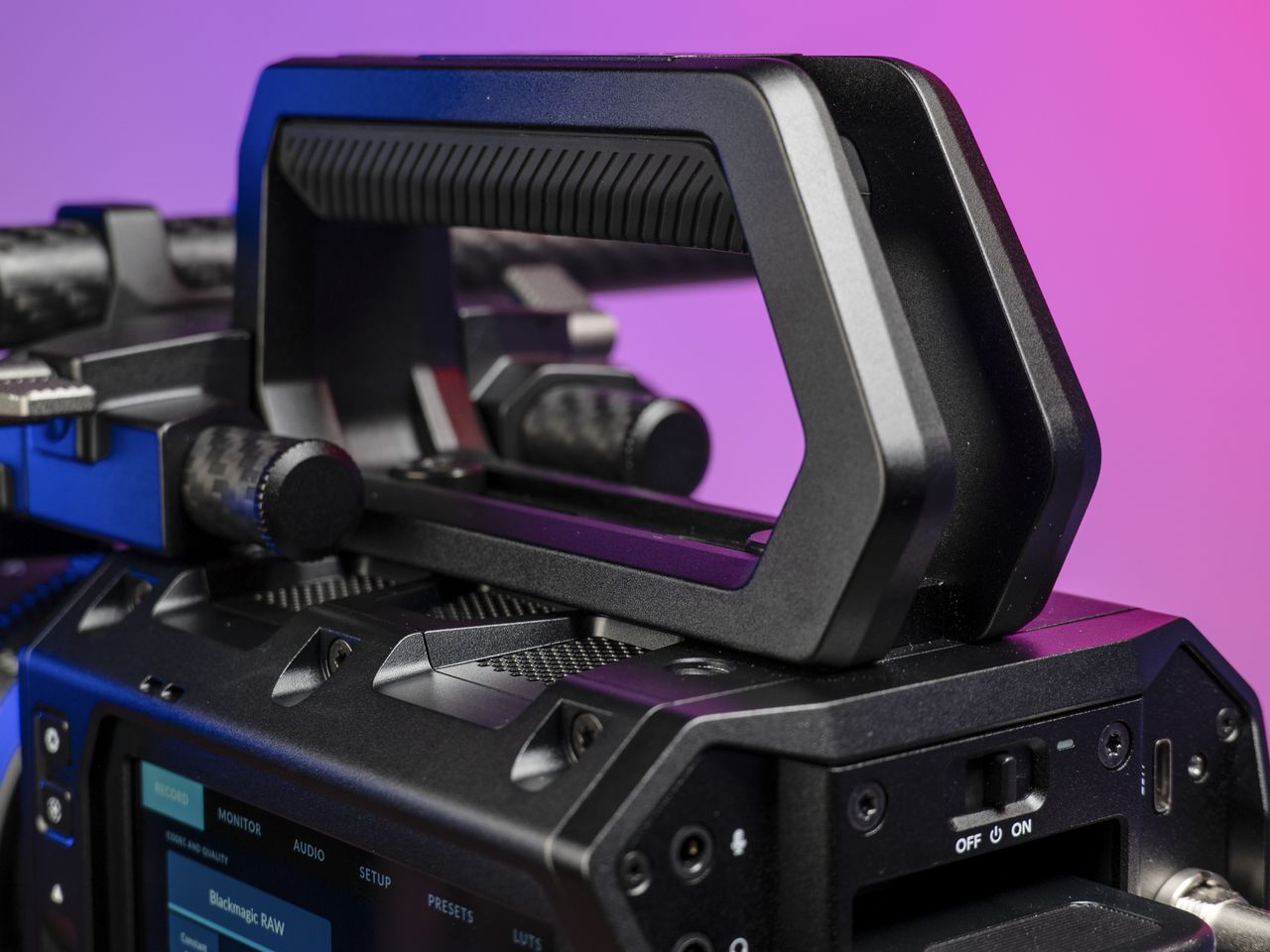

That price represents five star value given how the camera handles and what it is capable of for filmmaking. However, you will also need to factor in multiple accessories to improve the shooting experience, including an optional monitor, viewfinder, top handle and more.

• Price score: 4.5/5

Blackmagic Pyxis 6K: specs

Blackmagic Pyxis 6K: design and handling

• Excellent build quality with machined aluminum construction
• Modular design, requires accessories to maximize its potential
• UI doesn’t rotate as on the Pocket 6K

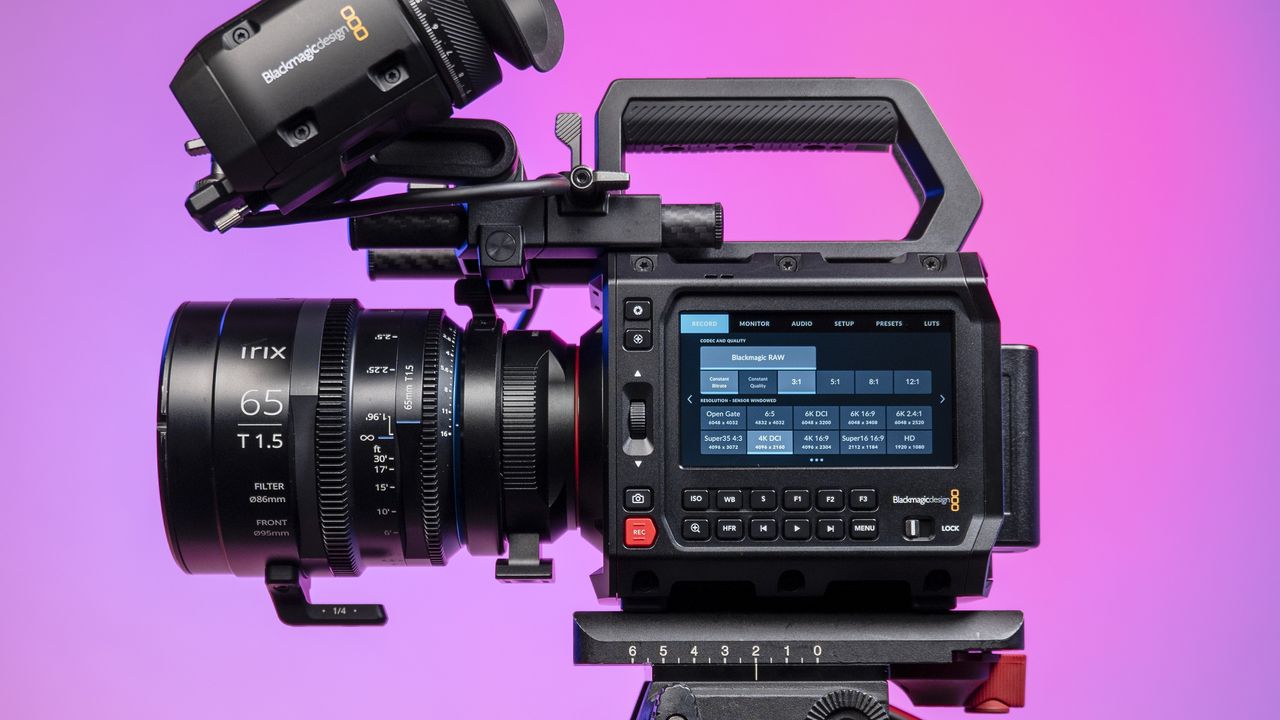

The Blackmagic Pyxis 6K is a relatively compact camera given what it's capable of, but it still weighs in at a hefty 3.3lbs / 1,500g, which is roughly the weight of two Lumix S5 IIX mirrorless cameras. Measuring 119 x 106 x 151mm (H x W x D), and with a fixed LCD display on its left side, the Pyxis feels like it needs an additional accessory for monitoring. If you want to stay on brand, your options include the Blackmagic URSA Cine EVF, the specially designed Blackmagic Pyxis Monitor, or a Blackmagic Video Assist. I had the chance to pair the camera with the Pyxis monitor, and it was ideal for run-and-gun-style shooting without being overly conspicuous, and its built-in pop-up hood is a nice touch. It’s a solid addition to the camera's accessory lineup, and provides full camera control via its touchscreen and the three customizable function buttons on its rear.

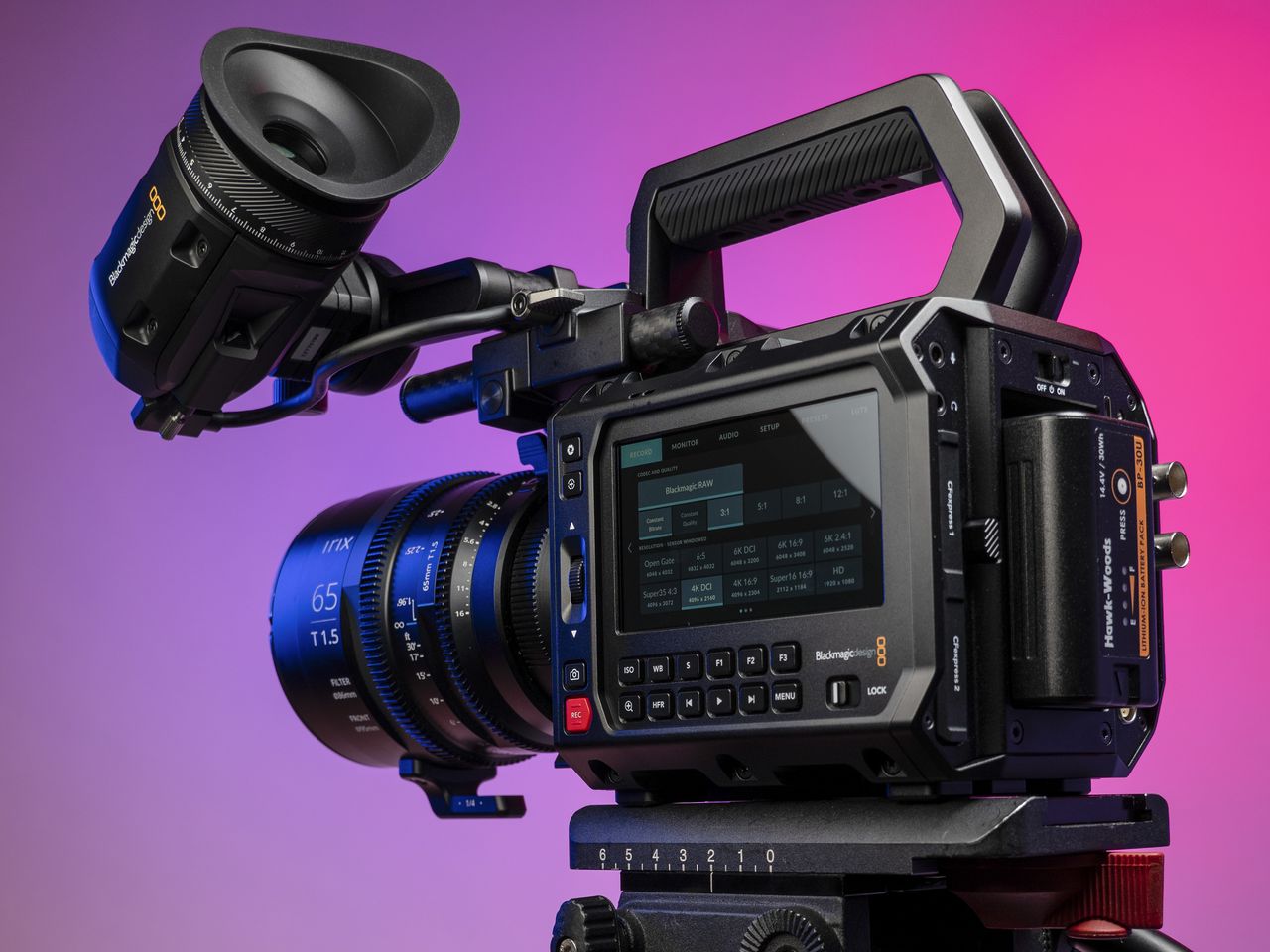

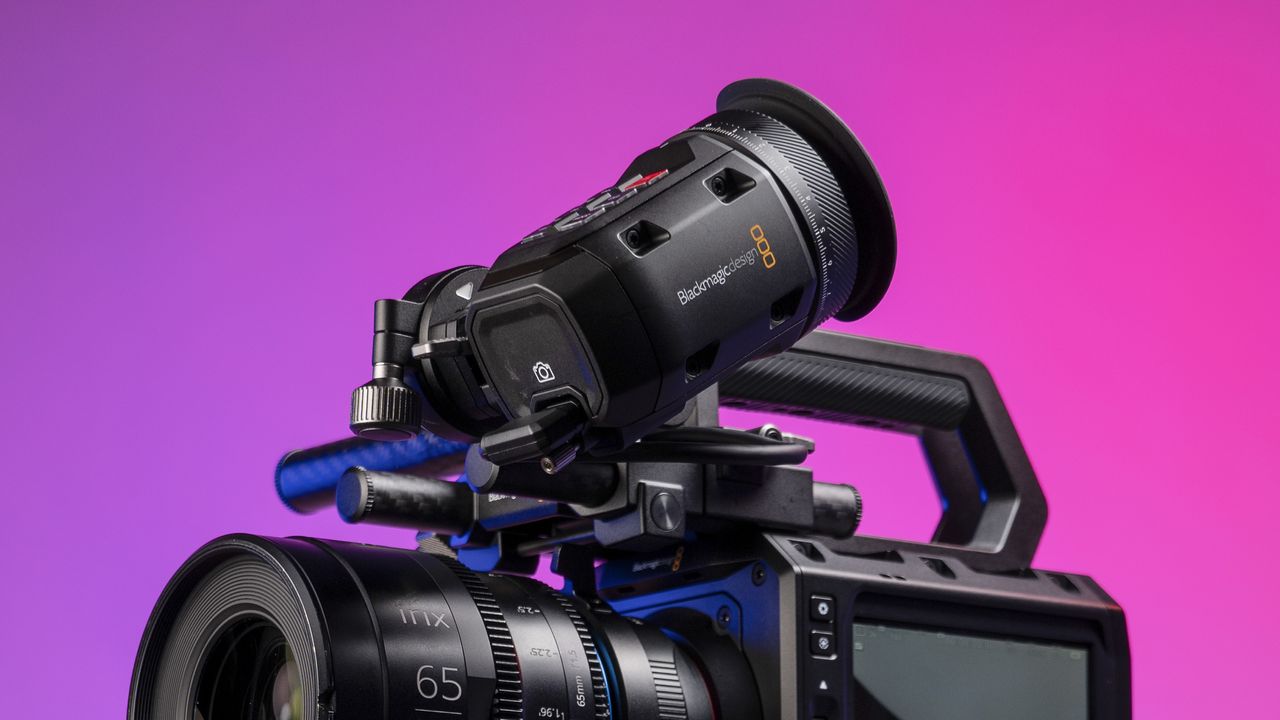

I also got to use the URSA Cine EVF, and it would be a great option for filming Electronic News Gathering (ENG) / documentary-style work, as it immerses you in the frame by blocking out off-camera distractions. The setup is highly flexible, with the EVF being easy to position. It comes with an extension arm, as well as USB-C to USB-C cables of various lengths, so that you can place the EVF in the most comfortable orientation possible for your style of shooting. A nice detail sees the EVF’s USB-C cables come with screw fixtures so that they can’t be easily pulled out, and I also like that the EVF has a tally light built into it.

Image 1 of 4

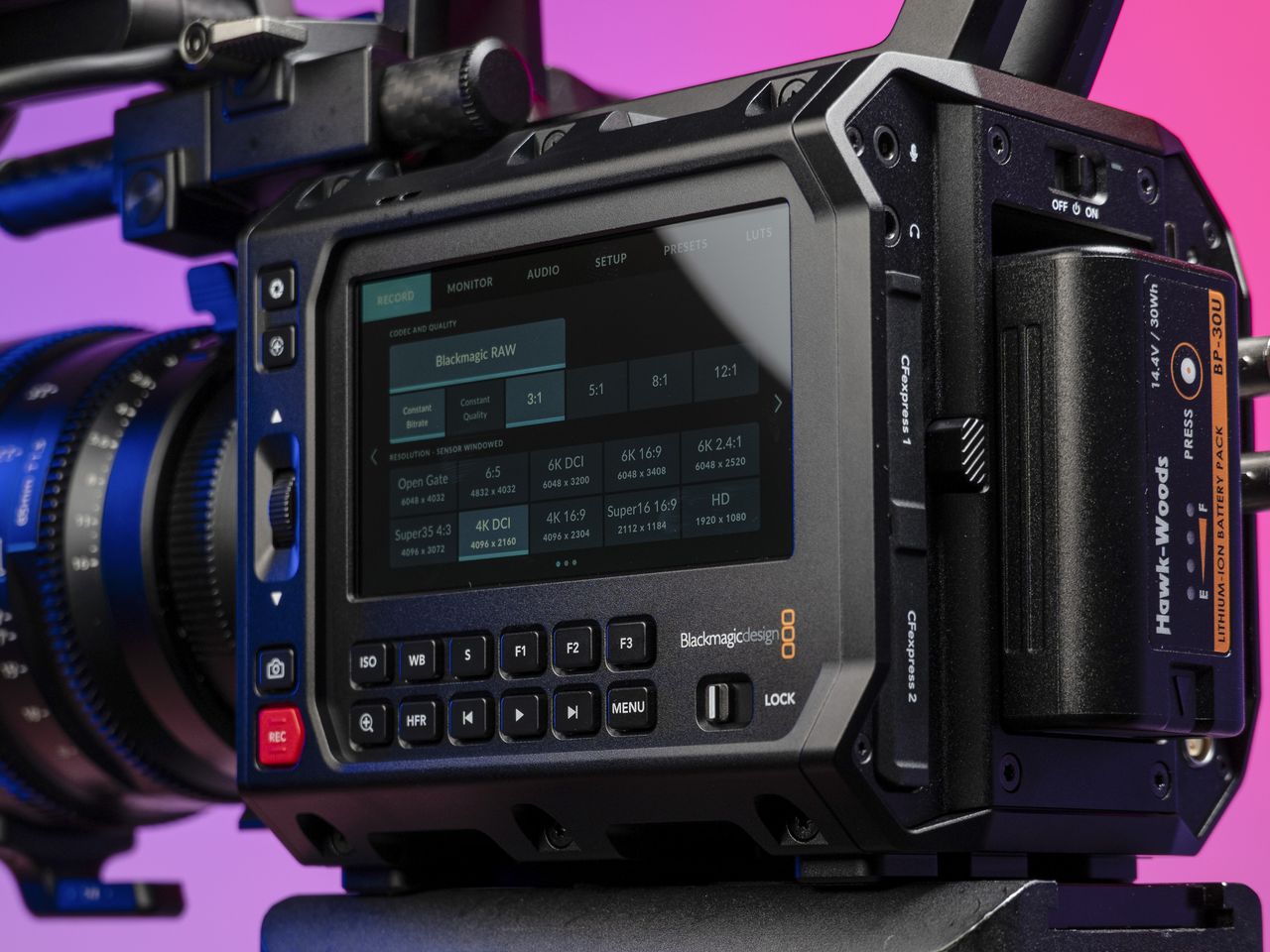

Returning to the side of the camera, the Pyxis has physical controls for all key functions, and offers three customizable function buttons so that you can save your most commonly used tools – I set mine to focus assist, false color and LUT view. If you use the EVF, it also has physical buttons, three of which can be independently customized from the ones you’ve assigned on the body. I found that the buttons and control dial click and scroll responsively, and while I would have preferred an additional record button on the front or right side of the camera, the placement of the physical controls is generally logical, and will be swiftly committed to muscle memory with regular use.

People who are new to cinema-style box cameras may be in for a slight shock when they realize just how much additional kit they need to buy in order to make their camera functional – while its starting price seems competitive, the camera doesn’t even come with a battery in the box. So you will want to factor in additional costs, as they can stack up quite quickly. As well as power, the optional £165 / $199 (around AU$325) top handle feels like a necessity too, not least because it's critical for working with the EVF or Pyxis monitor. I’d most likely purchase the Pyxis monitor first, but the EVF is a nicely designed piece of kit; for me, as somebody who often shoots handheld outside, it definitely elevates the functionality of the camera.

Image 1 of 6

The camera's layout is professional and purposeful, although the built-in screen’s position on the left side of the camera body forces you to touch it while holding it, quite a lot, which will undoubtedly jar some people. Helpfully, in the latest update (9.2) you’re able to lock the screen while still having full access to the camera’s physical controls, which is a welcome improvement in functionality. For audio, the camera offers a 3.5mm stereo input on the front, as well as a mini XLR input, which will give you phantom power. You can run the camera directly from mains power via its +12V 2-pin Lemo connector, which is handy for me, as someone who predominantly shoots in studios and controlled indoor environments. Its dual CF Express Type B card slots are protected by a rubber cover, and the locking USB-C ports add security for monitor connections. The overall build quality is excellent, especially given the camera’s competitive pricing, although the rubber media door could be more robust, and the lack of weather sealing is notable, albeit typical for this style of camera body.

• Design score: 4/5

Blackmagic Pyxis 6K: features and performance

• Internal 12-bit Raw video, but no ProRes
• Filmic quality to footage
• Versatile rigging options
• Professional I/O
• No in-body image stabilization
• No continuous AF

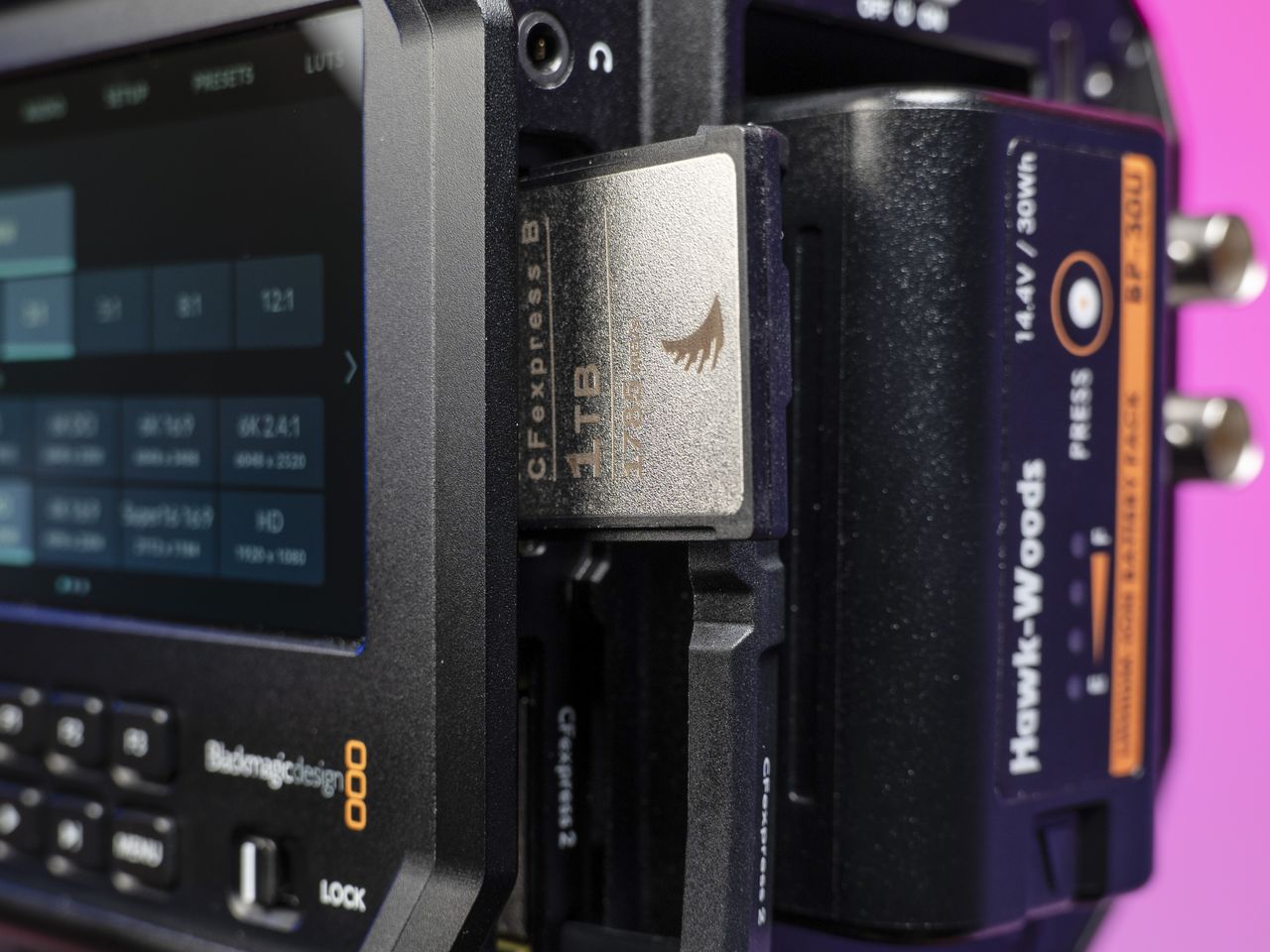

The Blackmagic Pyxis 6K offers impressive connectivity options, including 12G-SDI output, USB-C, and Ethernet. The dual native ISO provides flexibility in various lighting conditions, while the dual card slots offer redundancy and extended recording times. Its best-in-class menu system is intuitive for newbies and familiar to Blackmagic users, offering logical functionality and decent customization options.

Professional features include built-in timecode, streaming capabilities, and cloud workflow integration. It also comes with a range of exposure tools that will ensure you’re gathering as much usable Raw imaging data as possible while recording. Typically, I would rely on false color, which I assigned to one of the camera’s three customizable function buttons. But it was great to see the addition of the RGB traffic light indicator system, which has possibly been borrowed from RED’s Komodo cameras. When any one of the camera’s pixel channels are beginning to clip, that light will stay illuminated, indicating that you need to lower your exposure. It’s a great at-a-glance exposure tool that’s been seamlessly integrated into the general display UI. Although it doesn’t work for underexposure, there are plenty of other tools, like false color, histogram, and zebra patterns available to help here.

During my review window Blackmagic released a couple of relatively major updates, one for the Blackmagic Camera App (iOS v2.2) and the other for the Pyxis 6K. The improvements introduced with Firmware 9.2 included some handy connectivity features. If its running the latest firmware, the Pyxis can now use a compatible iPhone as a monitor when acting as a personal wireless hotspot and tethered via the rear USB-C port (the Pyxis itself has no Wi-Fi transmission module), and when functioning like this, you can use your iPhone to control multiple cameras and even initiate synchronized recording, which is a great solution for people who often rely on multi-camera setups. The new firmware also provided a significant boost to the camera’s power efficiency, adding roughly 30-40% more operating time in my experience. Of course, your mileage may vary, but before the update I was already able to get about 35 minutes out of a BP-U-30 (28Wh) battery, and after the update I was getting another 20-30 minutes or so extra. Battery life monitoring was also improved by the update, so the camera will now go all the way down to 1% before eventually shutting off.

Some may be disappointed to learn that the Pyxis 6K has no stabilization whatsoever, but it does record gyro data to offer reasonable stabilization in post. There’s also noticeable wobble caused by rolling shutter when you’re moving with the camera, particularly when shooting in 6K open gate mode; it’s not horrendous, but it would encourage me to shoot more static-style shots when using this camera in particular. The visible effects of rolling shutter diminish as you reduce the sensor area used for recording, and are barely noticeable when shooting at 4K/60p in 17:9 aspect ratio, so I’d say it’s worth being conscious of what your output may be. Shooting for your end output instead of belligerently spamming open gate may be the wiser choice – you can save open gate for shots with less camera movement that need the flexibility of the sensor’s full readout. It’s worth mentioning that Davinci Resolve is also able to use the camera’s gyro data to mitigate some of the warping that you may see when moving the camera around while recording.

Wrapping up my niggles, the autofocus system is basic and offers no continuous AF, but it does have some handy focusing tools, which can be adjusted to suit your preferences. You can also use the dedicated push-to-focus button at the top-left side of the camera, and there’s an Iris button above that, which can help you nail exposure in a pinch. The camera also works well with external focus solutions like the DJI Focus Pro, which would be a typical approach for working with a camera like this.

A final, positive operating observation is just how quickly the camera powers up. Within five seconds of switching it on, the camera is up and ready to record. If you’re not familiar with cinema cameras, this may seem like a long amount of time, but in this realm, the Pyxis is relatively speedy, and it’s refreshing.

• Features and performance score: 4/5

Blackmagic Pyxis 6K: image and video quality

• Excellent image quality in most conditions
• Better noise-handling than the Z50 at the same ISO
• 4K/60p video with a 1.5x crop

The Pyxis captures images that are typically attractive for Blackmagic cameras, if it’s a look you’re familiar with. By this, I mean that the footage looks detailed, without looking sharp, and highlights roll off softly, delivering a cinematic look that needs very little work to get it ready to publish. The quoted 13 stops of dynamic range provides good flexibility in post-production, especially if you expose for the highlights and utilize DaVinci Resolve’s highlight recovery in post, when needed. Color reproduction is excellent thanks to Generation 5 color science, and the OLPF effectively controls moiré, which is great for shooting buildings, or clothing like silk and denim.

Low-light performance is good within the camera’s limitations, though not class-leading. However, Resolve is armed with comprehensive tools for reducing the impact of sensor noise. If you have the time and the aptitude, Blackmagic RAW files are really easy to work with, and can be honed to deliver an attractive look in most situations. While it’s not a no-light camera, the Pyxis would be perfectly capable of delivering attractive video in bar/club lighting scenarios or other low-ambient-lighting scenarios. The ability to shoot up to 6K resolution with a full-frame sensor with frames for various aspect ratios provides excellent flexibility for different delivery formats.

• Image and video quality score: 4.5/5

Blackmagic Pyxis 6K: testing scorecard

Should I buy the Blackmagic Pyxis 6K?

Buy it if...

Don't buy it if...

Blackmagic Pyxis 6K: also consider

How I tested the Blackmagic Pyxis 6K

• I had a briefing and sneak peak of the camera before its unveiling at NAB in 2024

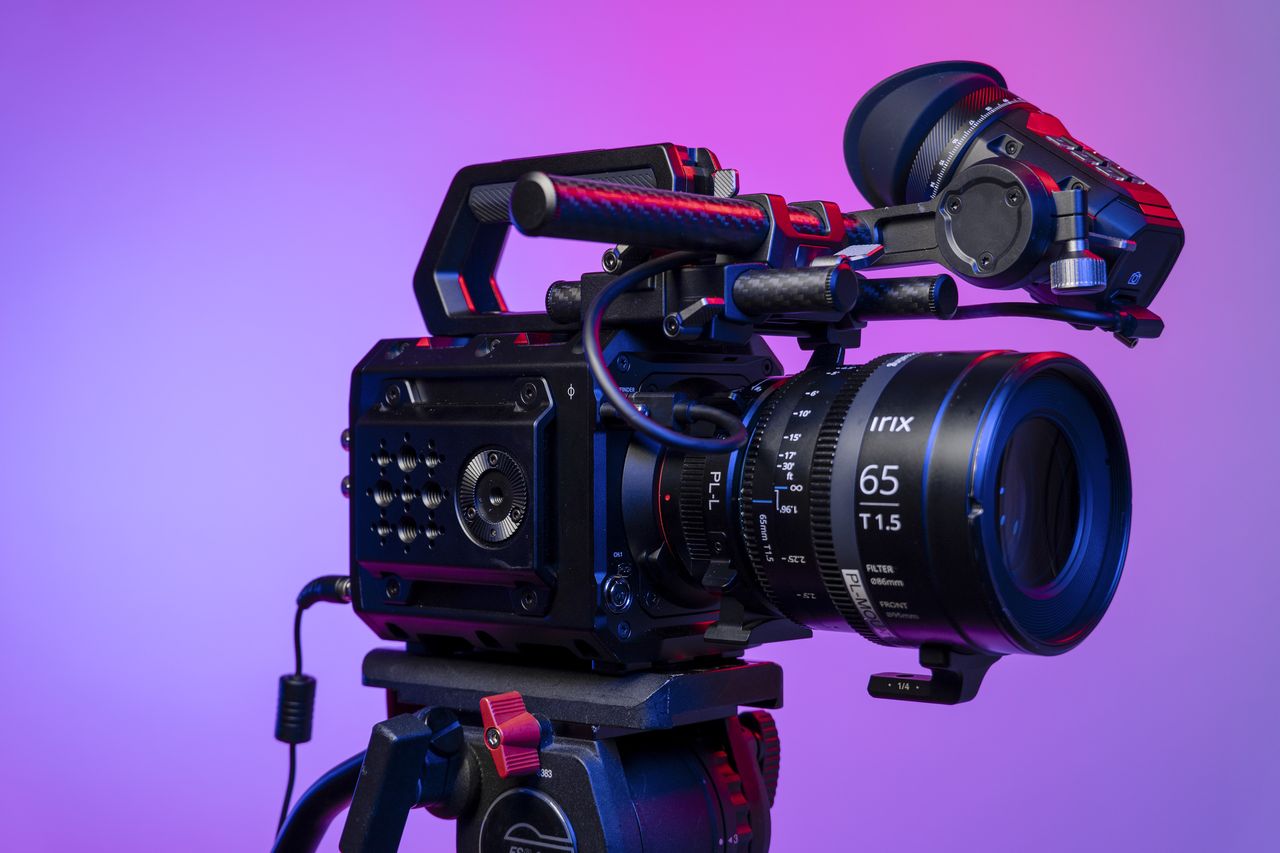

• I paired the camera with a variety of L-Mount lenses, and a IRIX T1.5 via a Viltrox PL-L adapter
• I connected the camera to the Blackmagic Camera app

I was sent the Blackmagic Pyxis for review to test for a couple of weeks, due to a firmware update being released during my review window. The kit that came with the camera included the Blackmagic URSA Cine Handle, the Blackmagic URSA Cine viewfinder, a 1TB Angel Bird memory card and reader, as well as a Sigma 24-70mm F2.8 lens.

The first thing I did after receiving the camera was to conduct my endurance tests, which include battery run-downs and heat management. I set the camera up on a tripod in an ambient temperature environment of 70F / 21C, and left it filming continuously while connected to mains power and on battery power alone.

I then took the camera out with me on some street walks, and to a couple of family and evening events. I performed sound-quality tests in a small studio environment.

First reviewed January 2025
